Crawler water well drilling rig for sale 500m depth GL500S Diesel engine well water drilling rigs
1.Description:
-GL500S water well drill rig with steel tracks.This model can drill max. 500m deepth.
-This drilling equipment is suitable for various terrains. The machine is fast to form holes,moving speed about 2.5 meters per hour, low noise, easy to operate, and can be operated by a single person.
-Adopting steel crawlers with rubber track boots, the rig can not only sustain heavy loading, but travel on all kinds roads.
-As for drilling tools, needed 3m/6m drill rod, and the tools can be provided basing on special customization.
-The rig is not only more suitable to be performed in urban area, but has the power consumption reduced to the lowest level under the non-loading working condition of the rig.
2.Applications:
widely used in drilling wells, agricultural irrigation, air hole and other use of geothermal well hole, is particularly applicable to mountain area and rock formation water engineering.
3.Specifications:
(For reference,more details please contact us)
| Item | Specification | | Weight of the rig(T) | 11 | | Drilling diameter(mm) | 138-350 | | Drilling depth (m) | 500 | | Feeding stroke(m) | 6.6 | | Moving speed(km/h) | 2.5 | | Climbing ability(°) | 30 | | Diesel engine(kw) | 118 | | Air pressure (mpa) | 1.8-3.5 | | Air consumption(m³/min) | 40 | | Rod diameter(mm) | Φ108 φ114 | | Rod length (m) | 3m/ 6m | | Lifting force (T) | 27 | | Rotary speed (r/min) | 40-100 | | Rotary torque(N.m) | 7500-10000 | | Supporting legs (height*width)(mm) | 1400*2800 | | Rig dimensions(length*width*height)(mm) | 6200*2100*2650 | | |

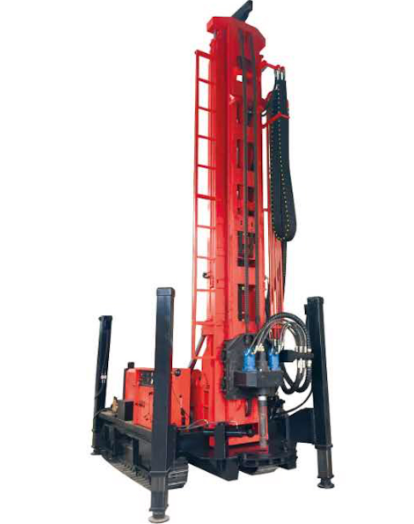

The Photo of products
Related Product
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
