165mm diamond cutters PDC steel body drill bit for oil and gas PDC drilling bits
1.Description:
-The surface of the blade is welded by wear-resistant hardfacing material, improves wear resistance and erosion resistance of the
bit.
-Enhanced gauge with high quality PDC cutters, helps several-fold increasing wear resistance and life of the bit.
-High density PDC cutting structure design ensures efficient reaming and drilling while extending the application and performance
range of casing running operation.
-Widened blades reduces vibration severity and protects shoulder cutters from impact loads, offering greater durability without sacrificing ROP.
2.Specifications:
| Size | 6 1-2" | | Number of Nozzles | 5 | | Number of Blades | 5 | | Total Number of Cutters | 29 | | Primary Cutter Size | 13mm | | Standard Gauge Length | 2"(50mm) | | API Pin Connection | 3 1/2" API Reg | | Hydraulic Flow Rate | 400~600 GPM/25~38 L/S | | Rotation Speed | 60~350 rpm | | Weight on Bit | 3~15 Klbs/14~67 KN | | Maximum Weight on Bit | 15Klbs/67 KN | |
3.Applications:
-PDC drill bits, utilizing this innovative technology, have found wide-ranging applications in construction, mining, geology, coal mining, water conservancy and hydropower projects, highways, high-speed railways, and bridge construction, among others.
-The composite drill bit mainly used for geological exploration and exploration is suitable for soft to medium hard rock layers. Now some manufacturers have newly developed new composite chips that can be applied to ten-grade hardness rock layers.
-PDCDrill Bits for Oil Well Drilling: Our PDC drill bits for oil well drilling are designed to excel in demanding drilling environments. These bits incorporate advanced features and cutting-edge technology, providing efficient and reliable drillingsolutions for oil well exploration and production.

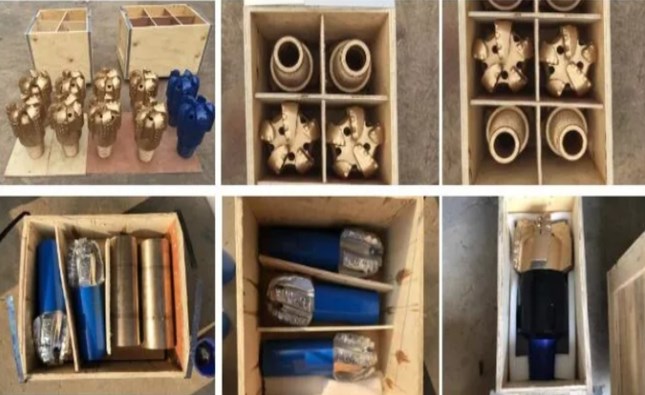

4.Packing
Packing: wooden box.
Delivery: Normally 5-7 days after down payment.
Shipping method: by express, by air or by sea
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
FAQ
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ?
A: No requirement for testing and trial order.
