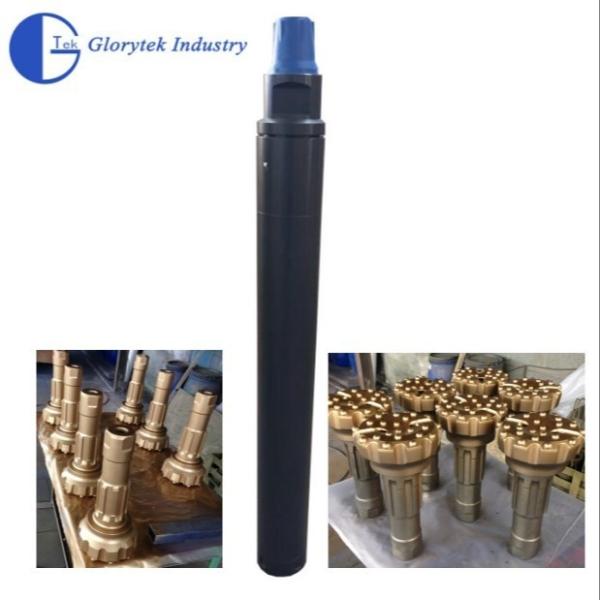

Mining 127mm Dth Drilling Hammer SGS Certification

Brand Name : GLORYTEK

Model Number : GL360SK GL380SK

Certification : SGS, TUV

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 100sets/month

Delivery Time : 10-15 days

Packaging Details : standard exporting packing

Name : 4'' 5'' 6'' 8'' 10''12'' High Air Pressure DTH Drilling Hammer for Mining Compatible with Bit Shank DHD, Ql, Mission

Keyword : 4'' 5'' 6'' 8'' 10''12'' DTH Drilling Hammers

Regular Sizes : 4'' 5'' 6'' 8'' 10''12'', etc.

Bit Shank : DHD, SD, QL, Mission, Numa, Cop etc.

Application : Borehole Drilling, Blasthole Drilling, Mining etc.

MOQ : 1set

Contact Now

4'' 5'' 6'' 8'' 10''12'' High Air Pressure DTH Drilling Hammer for Mining Compatible with Bit Shank DHD, Ql, Mission

Advantages:
1. Our products can match over 95% against the original products.
2. High quality raw material, with premium hardened procedures for long life.
3. Full production chain to secure stable and prompt production leadtime.
4. Experienced senior technicians and long year experienced workers and engineers.
5. Customized acceptable and quick and efficient service.

Technical Parameter

Hammers		 Bit Shank Connection Thread Suitable bit Working pressure Air consumption
1-3" Middle-low pressure DTH hammers
BR1
BR2
BR3		 RD40 box
RD50 box
API 2 3/8" Reg
¢64-¢76mm
¢70-¢90mm
¢90-¢110mm		 0.7-1.75Mpa
0.7-1.75Mpa
0.7-1.75Mpa		 0.7Mpa 4.5m3/min
1.0Mpa 4m3/min
1.4Mpa 5m3/min
3" hammers DHD3.5
COP32/COP34
M30		 API 2 3/8"Reg ¢90-¢110mm 1.0-1.5Mpa 1.0Mpa 4.5m3/min
1.5Mpa 9m3/min
4" hammers DHD340
COP44
QL40
SD4
M40		 API 2 3/8"Reg ¢105-¢130mm 1.0-2.5Mpa 1.0Mpa 6m3/min
1.8Mpa 10m3/min
2.4Mpa 15m3/min
5" hammers DHD350
COP54
QL50
SD5
M50		 API 2 3/8"Reg/API 3 1/2"Reg ¢130-¢156mm 1.0-2.5Mpa 1.0Mpa 9m3/min
1.8Mpa 15m3/min
2.4Mpa 23m3/min
6" hammers DHD360
COP64
QL60
SD6
M60		 API 3 1/2"Reg ¢152-¢203mm 1.0-2.5Mpa 1.0Mpa 10m3/min
1.8Mpa 20m3/min
2.4Mpa 28.5m3/min
8" hammers DHD380
COP84
QL80
SD8		 API 4 1/2"Reg ¢200-¢279mm 1.0-2.5Mpa 1.0Mpa 15m3/min
1.8Mpa 26m3/min
2.4Mpa 34m3/min
10" hammers SD10
NUMA100		 API 6 5/8"Reg ¢254-¢330mm 1.0-2.5Mpa 1.0Mpa 22m3/min
1.8Mpa 40m3/min
2.4Mpa 55m3/min
12" hammers DHD1120
SD12
NUMA120
NUMA125		 API 6 5/8"Reg ¢305-¢381mm 1.0-2.5Mpa 1.0Mpa 30m3/min
1.8Mpa 56m3/min
2.4Mpa 78m3/min
Packing of DTH Drilling Hammer

Packing: standard exporting packing.

Delivery: Normally 10 days after your advanced payment.

Company Profile

Mining 127mm Dth Drilling Hammer SGS Certification

Glorytek Corporation located in China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades.

We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.

Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.
