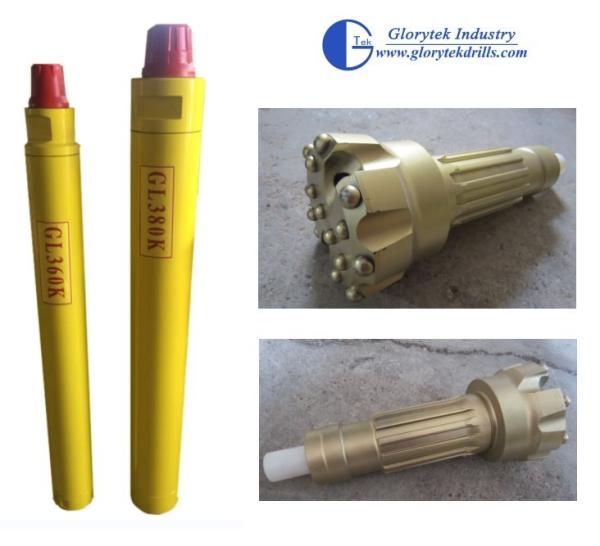

Mission Shank Dth Drilling Hammer 3 Inches To 12 Inches

Brand Name : GLORYTEK

Model Number : DHD, SD, Ql, Mission, Numa, Cop

Certification : SGS, TUV

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 100sets/month

Delivery Time : 10-15 days

Packaging Details : standard exporting packing

Name : 3inch to 12inch DTH Drilling Hammers with DHD/Ql/Cop/Misson/SD Shanks for Water Well Drilling

Keyword : DTH Drilling Hammers with DHD/Ql/Cop/Misson/SD shank

Regular Sizes : 3inch to 12inch

Shank : DHD, SD, Ql, Mission, Numa, Cop, etc.

Suitable Projects : Blasting Drilling Water Well Drilling, etc.

MOQ : 1set

Contact Now

3inch to 12inch DTH Drilling Hammers with DHD/Ql/Cop/Misson/SD Shanks for Water Well Drilling

DTH (down-the-hole) drilling involves a drilling hammer at the bottom of a drill string, the hammer is powered by compressed air transmitted via drilling rod to drive piston and produce impact power, which is then delivered into rocks for drilling and crushing. DTH drilling can be applied in mining, quarrying, water well drilling, foundation piling, etc. DTH hammer uses compressed air to produce impact power, thus to drive drill bits to crush rocks.

Features
• Extraordinary penetration rate
• Less air, more production
• Less downtime, longer duration
• Premium material, fine CNC and heat-treatment manufacturing processes and optimized design;
• Good stability and reliability;
• High impact frequency;
• Lowered compressed air consumption;
• Long lifespan

Applications
Mining, quarrying, water well drilling, geothermal well drilling, foundation piling, etc.

Technical Specifications:
COP 34, COP 44, COP 54, COP 64 Gold, COP 64, COP 84L, COP 84 hammers
Hammer COP 34 COP 44 COP 54 COP 64 Gold COP 64 COP 84L COP 84
Type Part No. Part No. Part No. Part No. Part No. Part No. Part No.
Standard 9703-03-00 9704-03-00 9705-03-00 9706-5-30 9706-05-00 9708-8-8 9708-08-00
9705-05-00
Q 9703-3-4 9704-3-4 9705-3-4 9706-05-34 9706-5-4
9705-5-4
QHD 9705-03-06 API Reg 9706-05-06 API Reg
9705-05-06 API Reg 9706-05-36 API Reg
9706-07-36 API IF
WHD 9705-03-20 (API Reg)
Effective length 954 mm 958 mm 1069 mm 1163 mm 1213mm 1230 mm 1323 mm
External diameter 83.5 mm 98 mm 120 mm 142 mm 142 mm 160 mm 178 mm
External diameter HD 126 mm 146 mm 146 mm
Hammer weight 27 kg 38 kg 57 kg 96 kg 95 kg 139 kg 158 kg
Hammer weight HD 67 kg 109 kg 109 kg
Recommended bit size 95-105 mm 110-125 mm 134-152 mm 156-178 mm 156-178 mm 191-219mm 203-254 mm
Rec. bit size HD hammer 140-152 mm 165-178 mm 165-178 mm
Rit shank COP 34 (Secoroc 3.5") IR340A IR350R IRQL60 IR 360 alt. Mission SD6/ 53-15 Mission SD8/ 63-15 IR380
Top sub thread 2 3 / 6 API Reg. 2 3 / 6 API Reg 2 3 / 6 API Reg 3 1 / 2 API Reg 3 1 / 2 API Reg 4 1 / 2 API Reg 4 1 / 2 API Reg
3 1 / 2 API Reg 3 1 / 2 API IF
Wrench flat 65 mm 65 mm 65 mm 102 mm 102 mm 120 mm 140 mm
95 mm
Wrench flat HD 95 mm
102mm
Working pressure 6-25 bar (87-360 psi) 6-25 bar (87-360 psi) 6-25 bar (87-360 psi) 6-30 bar (87-430 psi) 6-25 bar (87-360 psi) 6-25 bar (87-360 psi) 6-20 bar (87-290 psi)
Packing of DTH Drilling Hammer

Packing: standard exporting packing.

Delivery: Normally 10 days after your advanced payment.
