400meter Truck Mounted Borehole Drilling Machine Fast Delivery Multifunctional

Name: 400meter Truck Mounted Borehole Drilling Machine Fast Delivery Multifunctional
Brand: Glorytek
Price: 1 USD

Brand Name : Glorytek

Model Number : GL-III

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram, D/P, D/A

Supply Ability : 20sets/month

Delivery Time : 20 days

Packaging Details : Standard exporting packing

Name : Truck Mounted Water Well Drill Rig Borehole Drilling Rig Fast Delivery

Keyword : Truck Mounted Water Well Drill Rig

Depth : 400m

Hole Diameter : 120--1500(mm)

Mud Pump : BW600

Transport size : 10200*2470*3300(mm)

Rig Mass : 19340(Kg)

Contact Now

Truck Mounted Water Well Drill Rig Borehole Drilling Rig Fast Delivery

Description:

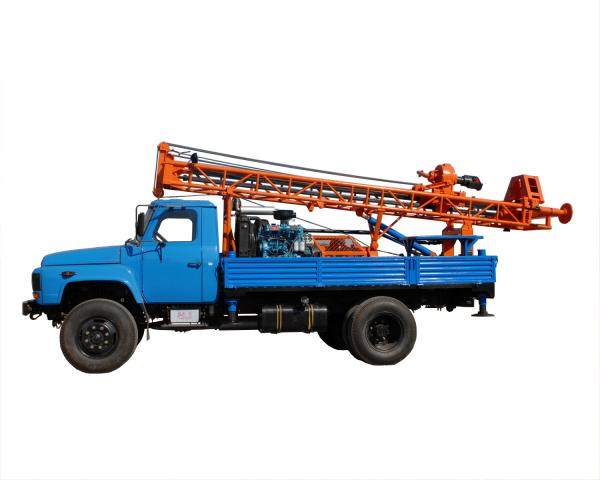

The GL-III multifunctional truck-mounted water well drilling rig is an efficient and multifunctional fully hydraulic water well drilling rig with large torque and high efficiency.

It has a large stroke by extending completely when working, which adapts to long drill stem and long casing constructions. It retracts when travel to reduce transportation dimensions.

It adopts cylinder-wire rope speed multiple feeding system with slow feeding mode, which provides slow drilling and fast lifting.

A centralized console is suitable for various operations and controls. Fast lifting reduces auxiliary time and improves work efficiency.

Tehnical Parameter:

GL-III Truck Mounted Water Well Drilling Rig
Drilling Parameter
Hole diameter:	120--1500(mm)
Hole depth:	400(m)
Run Of Rod:	3,4(m)
Drill rod diameter:	φ73 φ89 φ95 φ133(mm)
Drilling Technology:	Normaland Reverse Circulation for both Mud and Air
Down-The-Hole hammers:	Middle-High-Pressure Air
Performance parameter
Drill Head Inside Diameter:	φ80 φ120
Drill Head Spin Speed:	A(Forward:20-33-73,Reverse:13-23-47r/min)
	B(Forward:41-66-146,Reverse:26-43-94r/min)
	B(Forward:36-58-127,Reverse:23-37-80r/min)
Shape Parameters
Dimensions:	(L-W-H) Working conditions 9600×2950×7900(mm)
Transport status:	(L-W-H) 10200×2470×3300(mm)
Supporting Form:	Hydraulic Unit
Mast Up-Down:	Hydraulic Unit
Rig mass:	12500(Kg)
Chassis:	Dongfeng EQ 1141/JiefangCA1127 (four-wheel drive)
Power Unit:	Diesel Engine
Power:	84(kW)
Pump:	BW600/30 Mud Pump
Flow(m³/h):	720 513 335
Pressure(MP):	3 4 5

Related products

400meter Truck Mounted Borehole Drilling Machine Fast Delivery Multifunctional

Customer Visting

400meter Truck Mounted Borehole Drilling Machine Fast Delivery Multifunctional

Company Profile

400meter Truck Mounted Borehole Drilling Machine Fast Delivery Multifunctional

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
 Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.


FAQ
 Q: How can we choose a suitable water well drill rig?
 A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.

 Q: Are you a factory or a trading company ?
 A: We are an integrated corporation specialized in manufacturing and exporting.

 Q: What is your payment terms?
 A: We can accept T/T,L/C.

 Q:.What is your MOQ? How long is the delivery time?
 A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.

 Q:. How long is the warranty?
 A: The guarantee period for mainframe is one year (excluding the quick wear parts).

 Q: Can we print my Logo on the products?
 A: Yes, we can. We support OEM .
