65KW Diesel Drill Rig 200m Depth Hard Rock Water Well Drilling Rig
1.Description:
○GL200R water well drill rig with rubber tracks.This model can drill max. 200m deepth.
○It adopts domestic famous 65kw high-power diesel engine.which features strong power and ability to meet the working require-ment of various operation environment.
○The mud pump and air compressor are installed on the same chassis. Users can switch the drilling method at any time according to the specific geological conditions. For example, in soft strata and sand layers, mud pump operation can be selected, mud is used as flushing fluid, and positive circulation drilling is realized by high-pressure grouting of mud pump; when encountering rock layers, air compressor air drill can be selected, and the drilling efficiency is higher.
○After more than 20 years of market test, the drilling rig has reliable quality, simple operation and low maintenance cost. Welcomed by domestic and foreign drilling companies.
2.Applications:
It is widely used in Industrial & Agricultural Water Conservancy Engineering. It can drill rock well, monitoring well and exploration well, especially apply to drilling geothermal heating hole. It also can satisfy the project demands of engineering foundation reinforcement, pipe-following drilling on loose gravel stratum, cornerstone drilling and etc.
3.Specifications:
(For reference,more details please contact us)
| GL200R Item | Specification | | Weight of the rig(T) | 5 | | Drilling diameter(mm) | 138-219 | | Drilling depth (m) | 200 | | Feeding stroke(m) | 3.5 | | Moving speed(km/h) | 2.5 | | Climbing ability(°) | 30 | | Diesel engine(kw) | 65 | | Air pressure (mpa) | 1.8-2.5 | | Air consumption(m³/min) | 18-30 | | Rod diameter(mm) | Φ76 φ89 | | Rod length (m) | 1.5 3.0 | | Lifting force (T) | 13 | | Rotary speed (r/min) | 35-70 | | Rotary torque(N.m) | 5500 | | Supporting legs (height*width)(mm) | 1200*2400 | | Rig dimensions(length*width*height)(mm) | 3500*1600*2200 | | |

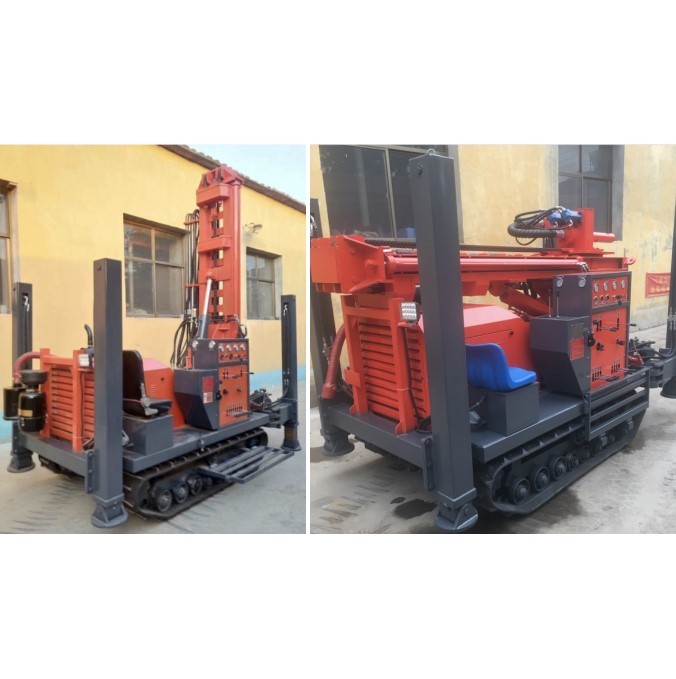

The Photo of products
Related Product

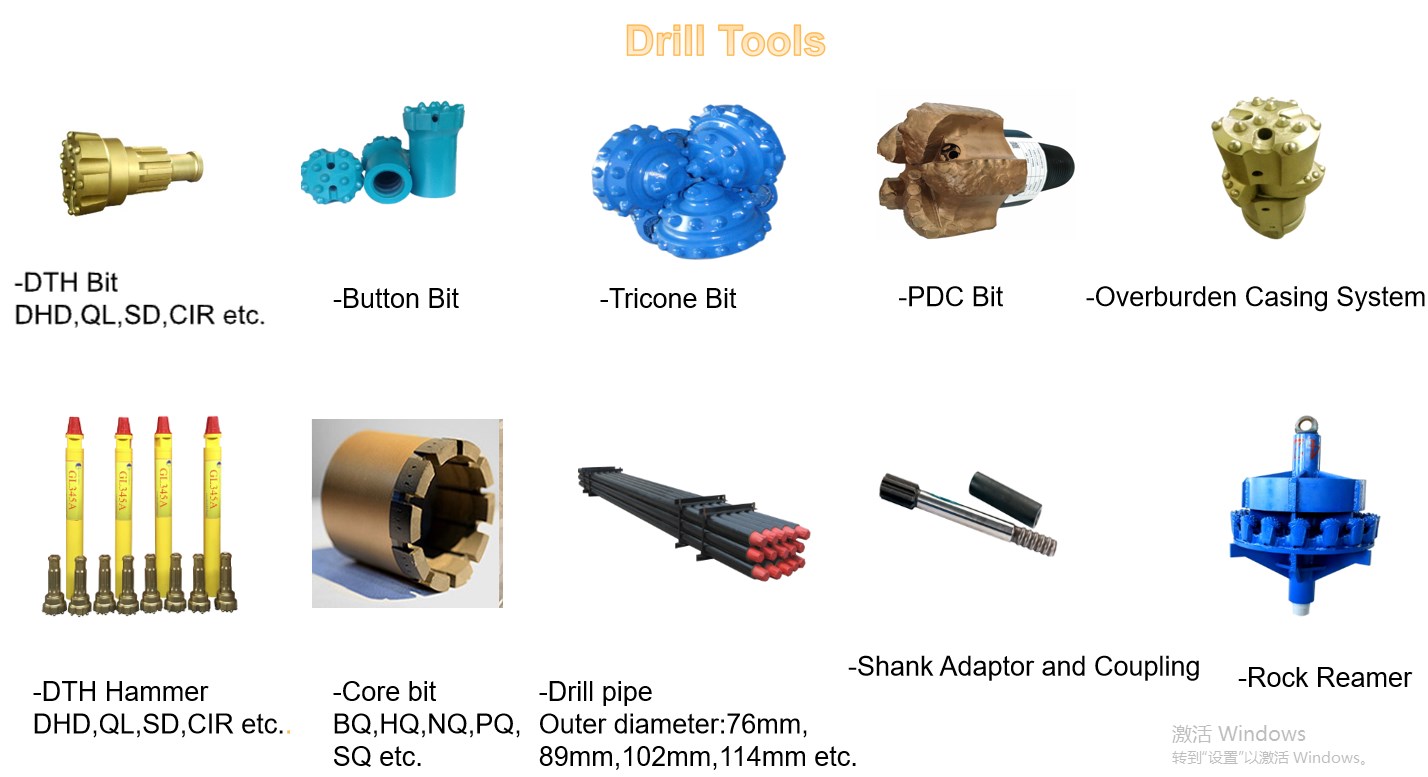

we can supply full set of drilling tools:drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit etc.
Drilling equipment:Air compresoor and Mud pump.

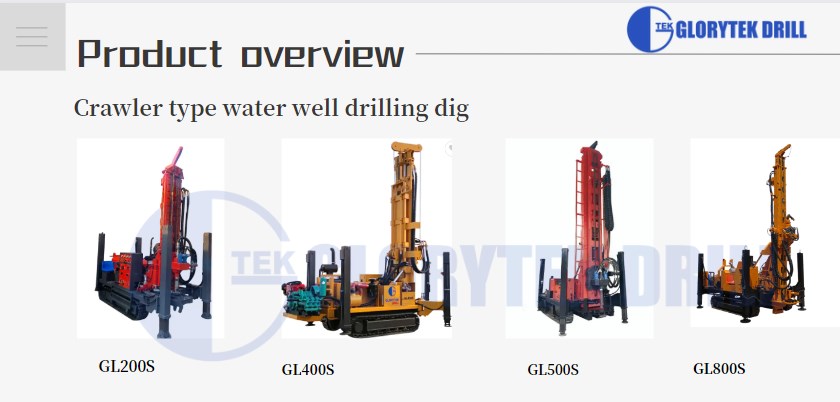

Drilling rig:Water well drilling rig/HDD drilling rig/Core drilling rig/RC drilling rig/Rock drilling rig etc.
