Crawler types 200m Hydraulic Rotating and feeding drilling rig for water well drilling
1.Description:
Type:Diesel engine
Power:76kw
Max Drilling Depth:330M
Drilling Diamater:105-300MM
Air compressor:1.25-3.5Mpa
Air consumption:16-55m³/min
>>With automatic oil supply mechanism, improving drilling efficiency, reducing labor intensity.
>>Drilling Efficiency is 10-35 M/h, can achieve non-stop inverted bar, be easy to operate, safe and reliable.
>>Compact structure,centralized handle, small footprint, light weight, strong decomposition, easy to move. Suitable for plain and mountain areas.
>>High quality Water Well Drilling Rig Machine for Sale is suitable for drilling works such as water well drilling, general exploration, geophysical exploration, road and building exploration, blasting hole drilling and so on.
>>The drill rig equiped with Drill Pipe Dia., and the Max.Rotation Torque is 4500-6500N.m.
2.Applications:
This crawler well drilling rig is a multi-functional pneumatic drilling rig, which is used with screw air compressor to achieve rapid drilling. It is suitable for a variety of complex strata, soil layer, fluid sand layer, a large number of rock layers, pebbling, etc., with simple hydraulic operation, high mechanization degree, saving time and effort.
3.Specifications:
| Technical Parameter | | Max. Drilling Depth | 200m | | Drilling Hole Dia. | 90-315mm | | Working Pressure | 1.7-3.0Mpa | | Air Consumption | 17-35m3/min | | Drill Pipe Length | 3m | | Drill Pipe Dia. | 76mm/89mm | | Axial Pressure | 4T | | Lifting Force | 14T | | Lifting Speed | 2.5m/min | | Push Speed | 0.5-5m/min | | Fast lifting Speed | 35m/min | | Max.Rotation Torque | 4500-6500Nm | | Rotation Speed | 50-70r/min | | Working Hoist Lifting Force | 1.5T | | Mud Pump Flow Rate | 20L/min (optional) | | High Pressure Hydraulic Legs Stroke | 1.5m | | Drilling Efficiency | 10-35m/h | | Travel Speed | 2Km/h | | Grade ability | 30° | | Weight | 5.4T | | Dimension | 3.9x1.7x2.15m | | Diesel Engine | 77KW(Yuchai ) | | Application formation | loose layer or bedding rock | | Drilling Method | Top Hammer Hydraulic Rotating and feeding, Down the hole hammer or mud pump drilling | | |

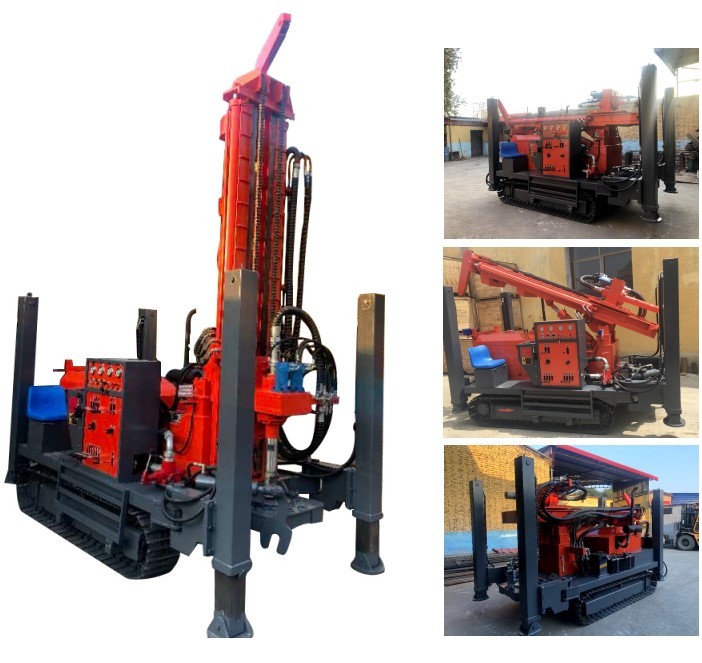

The Photo of products

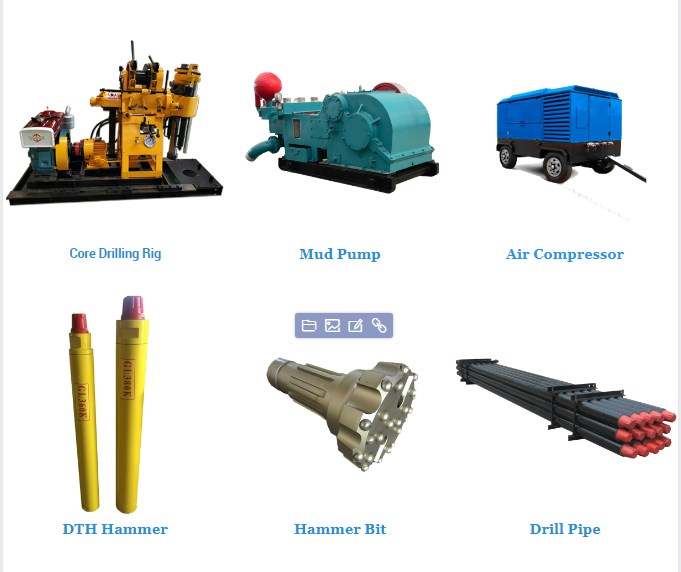

Related Product
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
After sale services:
>>Training Service
Our technician is available to your site and offer training of how to use our machines.
As well, you may send your technician to our company to learn how to operate machines.
>>Quality Guarantee
We sign the agreement with detailed technical data. Our warranty is 12 months.
