Portable trailer type water well drilling rig GL130T can be used in narrow areas
1.Description:
-GL130tT water well drill rig is compact design with dimension of 3850x1560x2050(mm).This model can drill max. 130m deepth.
-Our water well drilling rig is multifunctional, Small torque, can only be used with air compressor for drilling. The drilling rigs are not only designed for water drilling. They can be used in all conditions based on pore-forming purpose. The theory designed drilling depth we can also provide is 100 - 600 meters.
-They are widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock information connected with a variety of engineering. Our drilling rigs are more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance.
2.Applications:
Drilling wells for urban and rural life
Drilling wells for agricultural irrigation and industries
Drilling for geotechnical survey
Drilling construction engineering holes
Drilling geothermal pump wells
3.Specifications:
| The hole diameter (mm) | 100-219 | | Drilling depth (m) | 130 | | Drill pipe diameter (mm) | φ76, φ89 | | Drill pipe length(m) | 1.5m, 2.0m | | One-time stroke (m) | 2.3 | | Walking speed(km/h) | 3 | | Climbing angles(Max.) | 30 | | Air pressure(MPA) | 1.45-2.5 | | Air consumption (m3 /min) | 15-29 | | Rotating speed(rpm) | 40-65 | | Rig lifting force(T) | 6 | | Rapid rise speed(m/min) | 15 | | Fast feeding speed(m/min) | 23 | | High leg stroke(m) | 0.6 | | The feeding efficiency(m/h) | 10-35 | | Diesel engine Brand | Changchai | | Power(HP) | 32 | | Rotating torque(N.m) | 2200-3000 | | Dimension(mm) | 3850x1560x2050 | | The weight (T) | 3 | |

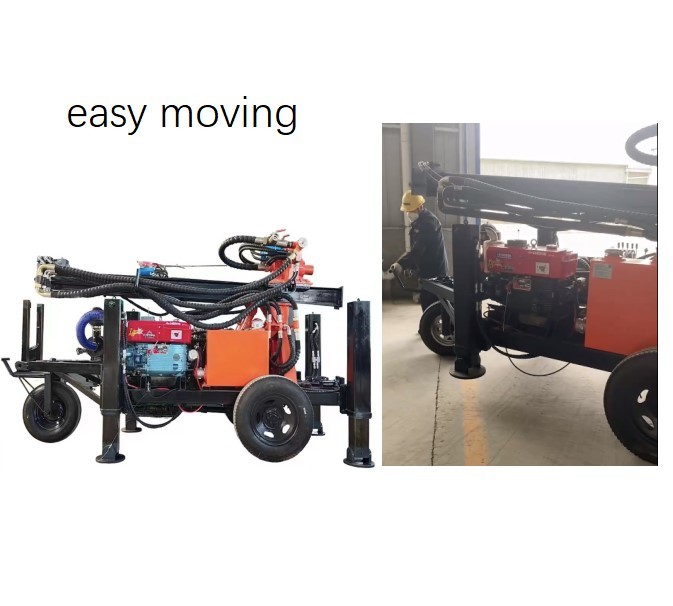

The Photo of products
Related Product
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
