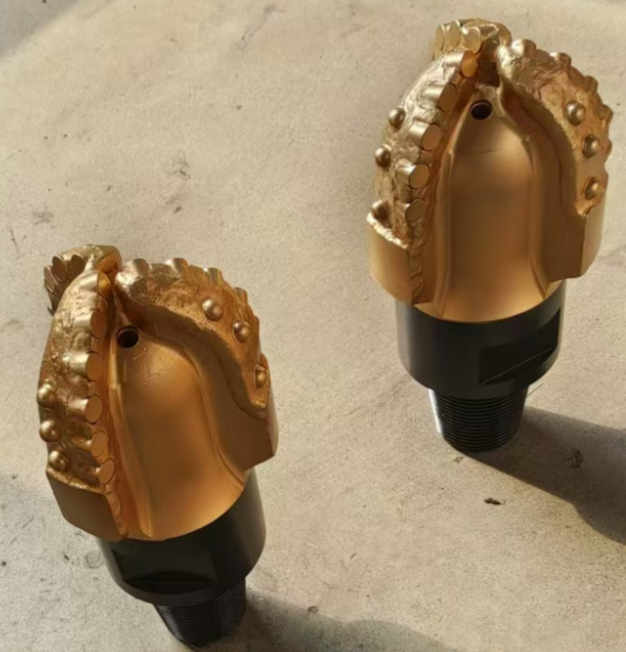

PDC Drill Bits
1. Description
PDC (Polycrystalline Diamond Compact) bits deliver exceptional performance in soft to medium-hard formations, offering faster ROP (Rate of Penetration) and longer service life compared to conventional drill bits.
Key Features:
✔ Diamond-Enhanced Cutters – Premium PDC cutters provide unmatched abrasion resistance for extended bit life.
✔ Optimized Hydraulics – Advanced nozzle placement improves cuttings removal and cooling efficiency.
✔ Customizable Designs – Available in matrix or steel body types with various blade/cone configurations for different formations.
✔ Stable & Vibration-Resistant – Anti-whirl design reduces lateral movement for smoother drilling.
✔ Cost-Effective Performance – Higher drilling speeds reduce operational time and overall project costs.
Ideal for oil & gas, geothermal, and water well drilling. Request custom engineering support for your specific formation challenges.
2. Product Parameters
| Bit Type | 6” | 8-1/2” | 8-1/2” | 12-1/4” | Bit Type | 17-1/2” GM1606T |
| IADC Code | M423 | M432
M332 | M323 | M432 M332 | IADC Code | M323 |
| Blade | 5 | 6 | 8 | 6 | Blade | 6 |
| Cutter Size (mm) | | | | Φ16MM | Cutter Size (mm) | Φ16MM；Φ13MM |
| Nozzle Qty/Type | 5 | 13.2 | 9.6 | 30.78 | Cutter Qty | Φ16×58；Φ13×81 |
| Nozzle Qty/Type | 3NZ | 6NZ | 4NZ | 6NZ | Nozzle Qty/Type | 8NZ |
| Gauge Length | 1.5” | 2.2” | 2” | 2.5” | Gauge Length (mm) | 110 |
| Connection | 3-1/2” API REG | 4-1/2” API REG | 4-1/2” API REG | 6-5/8” API REG | Connection | 7-5/8” API REG |
| Make up Torque(KN.m) | 10.4~11.4 | 24.1~26.5 | 24.1~26.5 | 51.7~56.9 | N.W./ G.W.(KG) | 338/388 |
| Rotary Speed(rpm) | 60-260 | 60-260 | 60-260 | 60-260 | Nozzle Size (inch) | 10/32 |
| Weight on Bit(KN) | 8-50 | 20-100 | 20-100 | 30-140 | Rotary Speed(Rpm) | 60-260 |
| Max.WOB(KN) | 90 | 130 | 130 | 180 | Weight On Bit(KN) | 30-200 |
| Flow Rate(lps) | 10-30 | 22-35 | 22-35 | 38-70 | Max.WOB (KN) | 240 |
| | | | | | Flow Rate(lps) | 45-80 |
Above are regular sizes for your reference. Size can be customized as per your requirement. |
3.Recommended Rock Formation
soft to medium formation with lower compressive strength and good drillability,such as marl,shale,lignite,sandstone,anhydrite,tuff ,etc.
4.Working Principle of PDC Drilling Bits
Drilling PDC drilling bit breaks rocks by cutting. The self-sharpening cutting teeth can easily cut into the formation under the action of WOB and move the shear rock forward under the action of torque. When multiple PDC cutting teeth work at the same time, and there are many free faces of the bottom rock, the rock is easy to be broken under the shear action. That's way PDC drilling bit has higher rock-breaking efficiency ans faster drilling speed.

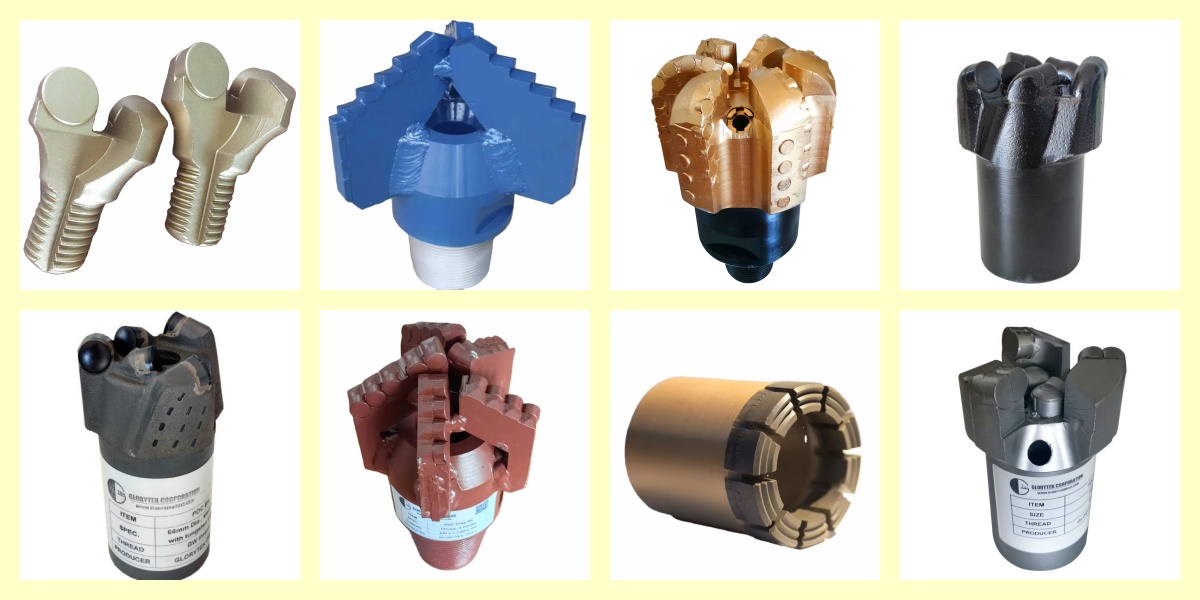

Related drill bit
Company Profile
Glorytek Industry (Beijing)Co.,Ltd., based in Beijing, China, is a leading manufacturer and exporter of high-quality drilling equipment and parts. With a highly experienced team of designers and engineers, we successfully deliver projects tailored to our clients' requirements. Our products find extensive use in mining, water well drilling, exploration, anchor grouting, side slope protection, oil and gas, underwater rock drilling, hydropower, and national defense projects.
After-sale Warranty
(1) Free change once the problem caused by the quality issue.
(2) Timely after-sale assistance shall be provided all the time.
FAQ
Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH Hammer. Moreover, we
have drilling equipments like rigs, mud pump, air compressor, etc. as well.
Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T. And 100%
advance payment after purchase order by T/T for small orders.
Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver 3-5 days.
Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
